Fiber Optic Joint Closures

Profile

LinkStar Splice Closure Family (LSCF) is designed for splicing fibers in aerial, duct and buried applications. These sealed canister closures are available in single-fiber loose tube (16 to 288) and ribbon fiber (288 to 1296) configurations.

Allowing reel-end to reel-end splicing in the open ribbon system (ORS), the SCF closures offer split end caps for convenient installation of uncut cables. The mechanical seal drop cable ports allow quick and easy installation during the initial build or for future expansion.

The consolidation of multiport tails for up to 24 flat cables is accomplished with optional add-a-cable kits. Designed for configuration flexibility, these closures offer expanded slack storage, various tray heights and mass platform storage.

Description

Application	Features
Aerial, duct and direct buried application	Working Environment: Working Temperature: -40℃～+60℃; Atmospheric Pressure: 70kPa ～ 106kPa; Relative Humidity≤95%（+40℃）;
	Protection Degree: Water tight, IP68;
	Resistance to tensile force: >1000N;
	Resistance to pressure: >2000N/10CM2 (DC)
	Insulation to pressure: >2x10MΩ/500V (DC)
	Insulation resistance: >20kMΩ.
	Compressive strength: 15KV (DC)/1 min no breakdown, no arcing
	Lifetime: 25 years.
	Sealing: normal atmospheric temperature, inner atmospheric pressure 70kpa, 72h keep atmospheric pressure not drop; high temperature(+60°C), inner atmospheric pressure 70kpa, 168h keep atmospheric pressure not drop
	Temperature cycle: Room temp(+20ºC),high low temp(-40ºC ~+60ºC) time≥4h, 12h one circle, inner atmospheric pressure 60kpa±1kpa run 10 times, amplitude of pressure drop does not exceed 5kpa, immersed into water at room temperature for 15 seconds without air bubbles escape.
	Other performances are all in accordance with the requirement of standard YD/T814-1998.

Type

In-Line Type:

1 in 1 out

LSCF-I-E

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-I-E	435x140x75	Ф10-Ф12.5	1 in, 1 out	12 Single Fiber	48 Single Fiber	Sticky Cincture

2 in 2 out

LSCF-I-A	LSCF-I-B
LSCF-I-C	LSCF-I-D
LSCF-I-G	LSCF-I-H
LSCF-I-I	LSCF-I-J

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-I-A	435x190x85	Ф10～Ф17	2 in, 2 out	24 Single Fiber	96 Single Fiber	Sticky Cincture
LSCF-I-B	435x190x120	Ф10～Ф22	2 in, 2 out	24 Single Fiber	168 Single Fiber	Sticky Cincture
LSCF-I-C	435x190x120	Ф10～Ф22	2 in, 2 out	24 Single Fiber	192 Single Fiber	Sticky Cincture
LSCF-I-D	435x190x80	Ф10～Ф17	2 in, 2 out	24 Single Fiber	96 Single Fiber	Sticky Cincture
LSCF-I-G	485x165x110	Ф10～Ф22	2 in, 2 out	24 Single Fiber	96 Single Fiber	Sticky Cincture
LSCF-I-H	580x185x125	Ф10～Ф22	2 in, 2 out	24 Single Fiber	192 Single Fiber	Sticky Cincture
LSCF-I-I	655x215x185	Ф10～Ф22	2 in, 2 out	24 Single Fiber	192 Single Fiber	Sticky Cincture
LSCF-I-J	655x215x185	Ф10～Ф22	2 in, 2 out	72 Ribbon Fiber	360 Ribbon Fiber	Sticky Cincture

3 in 3 out

LSCF-I-P

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-I-P	420x150x110	Ф10～Ф23	3 in, 3 out	24 Single Fiber	96 Single Fiber	Sticky Cincture

4 in 4 out

LSCF-I-F	LSCF-I-K
LSCF-I-L	LSCF-I-M
LSCF-I-N

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-I-F	435x190x170	Ф10～Ф22	4 in, 4 out	24 Single Fiber	288 Single Fiber	Sticky Cincture
LSCF-I-K	470x240x120	Ф10～Ф22	4 in, 4 out	24 Single Fiber	192 Single Fiber	Sticky Cincture
LSCF-I-L	465x230x125	Ф14	4 in, 4 out	24 Single Fiber	96 Single Fiber	Silicon Gasket
LSCF-I-M	465x250x180	Ф14, Ф17, Ф22	4 in, 4 out	24 Single Fiber	192 Single Fiber	Silicon Gasket
LSCF-I-N	465x250x180	Ф14, Ф17, Ф22	4 in, 4 out	24 Single Fiber	288 Single Fiber	Silicon Gasket

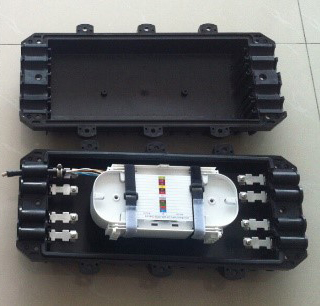

4 in 16 out

LSCF-I-O

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-I-O	465x230x125	Ф7, Ф14	4 in, 16 out	24 Single Fiber	96 Single Fiber	Silicon Gasket

Dome Type:

2 in 2 out

LSCF-D-A

LSCF-D-B

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-D-A	Ф190×410	Ф7～Ф22	2 in, 2 out	24 Single Fiber	96 Single Fiber	Screw thread mechanical seal Silicon gum material
LSCF-D-B	Ф190×435	Ф7～Ф22	2 in, 2 out	24 Single Fiber	96 Single Fiber	Heat shrinkable sealing structure Silicon gum material

3 in 3 out

LSCF-D-C

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-D-C	Ф210×540	Ф7～Ф22	3 in, 3 out	24 Single Fiber /72 Ribbon Fiber	96 Single Fiber /288 Ribbon Fiber	Heat shrinkable sealing structure Silicon gum material

4 in 4 out

LSCF-D-D

Specification
Type	Dimension (mm）	Cable Diameter (mm)	Cable Ports	Splice Tray Capacity	Max Capacity	Sealing structure
LSCF-D-D	Ф230×550	Ф7～Ф22	4 in, 4 out	24 Single Fiber	144 Single Fiber	Screw thread mechanical seal Silicon gum material
