Network Cabinets
Profile
LinkStar 19″ network cabinet is designed for Severs, Networking, AV, Telecom & Lab application. Racks manufactured out of steel sheet punched, formed, welded and power coated with highest quality standards under stringent ISO9001:2008 manufacturing & quality management system to ensure highest quality product.
Standard for cabinets configuration will be welded frame with vented top cover with fan mounting provision, associated front glass or perforated metal door with lock & key and back vented / perforated metal door with lock & key and partially vented side panels, free standing on floor with 4 No. coasters wheels with 2 No. with brakes & 2 No. without brakes, optional levellers. Available from 6U to 47U variants with 600, 800 & 1000 deep configurations and 600 & 800 width configurations.
| Application | Feature |
|---|---|
| Severs, Networking, AV, Telecom & Lab application | Loading Capacity: 800kg |
| Material: SPCC High-quality cold roll steel | |
| Mounting profile: 2.0mm, others: 1.20mm to1.50mm | |

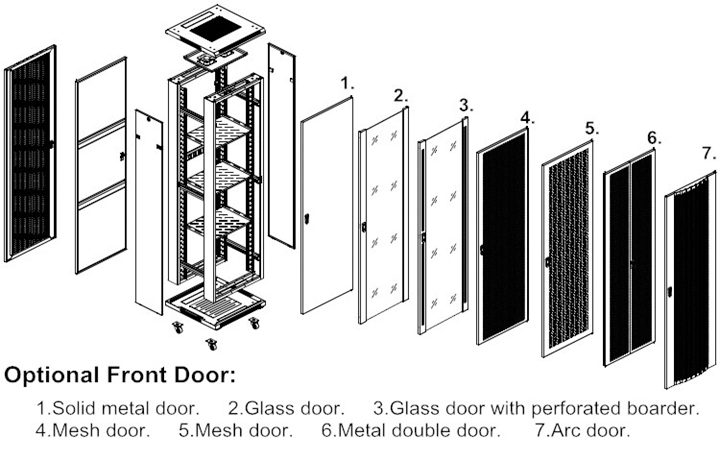

| Front Door: Vented mesh or toughened glass front door with Over 180 Turing Degree | |
| Rear Door: High-Density square holes Rear Door (Ventilation Rate Above 75%) | |
| Side Panel: Removable side panel, easy to install and maintain (Lock Optional) | |
| Lock: Revolving lock for rear door. Handle lock for front door | |
| Vented front and sides for cooling | |
| Pre-punched holes for cabling | |
| 19” adjustable rails (front and back) | |
| Protection grade: IP20 | |
| Surface Finish: Degreasing, Pickling, Phosphating, Powder coating | |
| Color: Black, White, or Grey |
Type
| Specification | ||||||
|---|---|---|---|---|---|---|
|
Height: Available from 6U to 47U; Width: 600mm, 800mm, and 1000mm; Depth: 600mm, 800mm, and 1000mm; |
||||||

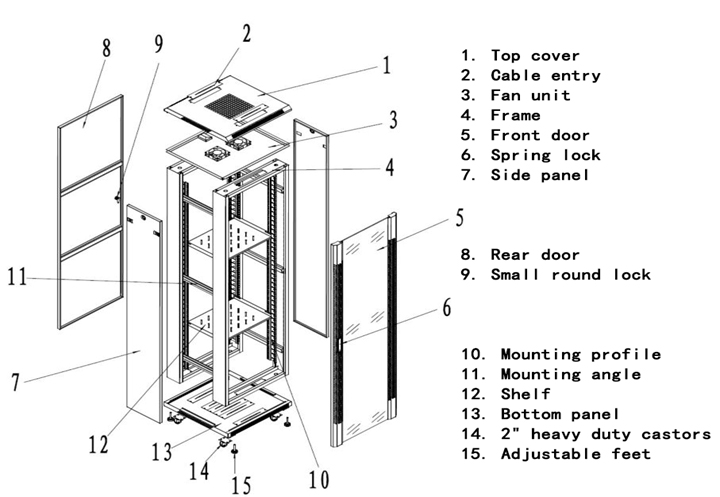

| Main Parts: | ||||||
|
No |
Component |
Qty |
Unit |
Material |
Surface Finishing |
Remark |
|
1 |
Top Cover |
1 |
pc |
SPCC cold rolled steel T1.0 |
Powder Coated |
|
|
2 |
Fan Unit |
1 |
pc |
Powder Coated |
Optional to have 2 fans |
|
|
3 |
Mounting Profile |
4 |
pc |
SPCC cold rolled steel T1.5 |
Powder Coated |
|
|
4 |
Mounting Angle |
4 |
pc |
SPCC cold rolled steel T1.2 |
Powder Coated |
6pcs for over 30U |
|
5 |
Shelf |
1 |
pc |
SPCC cold rolled steel T1.2 |
Powder Coated |
2pcs for over 20U |
|
6 |
Spring Lock |
1 |
pc |
Black |
||
|
7 |
Front Door |
1 |
pc |
Tempered glass/SPCC T1.2 |
Powder Coated |
|
|
8 |
Frame |
1 |
pc |
SPCC cold rolled steel T1.0 |
Powder Coated |
|
|
9 |
Side Panel |
2 |
pc |
SPCC cold rolled steel T1.0 |
Powder Coated |
|
|
10 |
Bottom Panel |
1 |
pc |
SPCC cold rolled steel T1.0 |
Powder Coated |
|
|
11 |
Small Round Lock |
1 |
pc |
Nicked Coated |
||
|
12 |
Rear Door |
1 |
pc |
SPCC cold rolled steel T1.0 |
Powder Coated |
|
|
13 |
M6 B-head Screw |
20 |
pc |
Steel |
Color Zinc Coated |
40pcs for over 30U |
|
14 |
M6 Square Nut |
20 |
pc |
Steel |
Color Zinc Coated |
40pcs for over 30U |
|
15 |
2” Heavy Duty Castor |
4 |
pc |
SPCC cold rolled steel T1.0 |
Powder Coated |
|
|
16 |
M12 Adjustable Feet |
4 |
pc |
SPCC cold rolled steel T1.0 |
Powder Coated |
|
