The LinkStar Optical Distribution Frame (LS-ODF) is based on a modular and totally integrated design which allows the user to expand and grow its fiber management system one frame, one module, and one fiber termination at a time.

LS-ODF provides more capacity and flexibility for all user fiber optic needs. LS-ODF provides efficient cable connections between outside plant cable and equipment in the buildings and communication facilities. LS-ODF integrates fiber splicing, storage, and cable connections together in single unit. The frontal access and the unique adaptor arrangement design will increase user work speed and maintenance efficiency.

ODF

150102-44
LS-ODF-A		 150102-45
LS-ODF-B		 150102-46
LS-ODF-C		 150102-47
LS-ODF-D		 LS-ODF-E

LS-ODF-A

Application Features
It can be used in the termination and distribution of optical trunk cable in optical cable communication system. 19 standard cabinet, with large-capacity, high-density, modular structure.
Easy to realize connection, distribution and adjustment. Integrated with fiber fusion, storage and distribution, available to manage every single modular on or off rack.
Ensure process ability with organized arrangement of fibers, pigtails and patch cords.
Suitable for installation of FC, SC, ST, etc. adaptors, for normal pigtails and bundle.
Specifications

P/N

Dimension (mm) H×W×D

Capacity

Splice Tray

Spec

Standard Qty

Maximum Qty

ODF-A-42

42U(2000)×600×300

504 fiber SC

12 fiber/tray

36

42

ODF-A-47

47U(2200)×600×300

576 fiber SC

12 fiber/tray

42

48

ODF-A-56

56U(2600)×600×300

720 fiber SC

12 fiber/tray

54

60

LS-ODF-B

Application Features
Suitable for medium capacity distribution site of FTTX splitting spot etc. Bar shape cabinets, occupying small space.
Preloaded with splitter modules, achieve light splitting function easily. Front side operation, cable incoming or outgoing from the upper and lower sides.
Preloaded with splitting modules in the frame, easy to operate.
Specifications

P/N

Dimension (mm) H×W×D

Capacity

Splice Tray

Spec

Standard Qty

Maximum Qty

ODF-B-42

42U(2000)×240×300

144 fiber SC

12 fiber/tray

8

12

ODF-B-47

47U(2200)×240×300

192 fiber SC

12 fiber/tray

8

12

ODF-B-56

56U(2600)×240×300

240 fiber SC

12 fiber/tray

12

16

LS-ODF-C

Application Features
Connecting distribution network and equipment cables. 19” standard cabinet, large capacity, high intensity.
Connecting with indoor cable termination equipments. Modular structure, easy to splicing, distribution and storage
Top, bottom and rear open for cable entrance, covered with removable blank panels.
Accomplishing scientific arrangement for patch cords with fiber storage units.
Suitable for inserting installation of SC, FC and ST adapter.
Specifications

P/N

Dimension (mm) H×W×D

Capacity

Splice Tray

Spec

Standard Qty

Maximum Qty

ODF-C-42

42U(2000)×840×300

576 fiber SC

12 fiber/tray

42

48

ODF-C-47

47U(2200)×840×300

648 fiber SC

12 fiber/tray

48

54

ODF-C-56

56U(2600)×840×300

792 fiber SC

12 fiber/tray

60

66

LS-ODF-D

Application Features
It can be used in the termination and distribution of optical trunk optical cable in optical cable communication system. 19” standard cabinet, with large-capacity, high-density, modular structure.
Easy to realize connection, distribution and adjustment. Integrated with fiber fusion, storage and distribution, available to manage every single modular on or off rack.
Ensure process ability with organized arrangement of fibers, pigtails and patch cords.
Suitable for installation of FC, SC, ST, etc. adaptors, for normal pigtails and bundle.
Specifications

P/N

Dimension (mm) H×W×D

Capacity

ODF Unit

Spec

Standard Qty

Maximum Qty

ODF-D-42

42U(2000)×840×300

576 fiber SC

72 fiber/4U

7

8

ODF-D-47

47U(2200)×840×300

648 fiber SC

72 fiber/4U

8

9

ODF-D-56

56U(2600)×840×300

792 fiber SC

72 fiber/4U

10

11

LS-ODF-E

Application Features
It can be used in the termination and distribution of optical trunk optical cable in optical cable communication system. 19” standard cabinet, with large-capacity, high-density, modular structure.
Easy to realize connection, distribution and adjustment. Integrated with fiber fusion, storage and distribution, available to manage every single modular on or off rack.
Ensure process ability with organized arrangement of fibers, pigtails and patch cords.
Suitable for installation of FC, SC, ST, etc. adaptors, for normal pigtails and bundle.
Specifications

P/N

Dimension (mm) H×W×D

Capacity

 ODF Unit
Spec

Qty
ODF-E-47 47U(2200)x1000x300 1440 fiber SC

2880 fiber LC

 72 Fiber/4U 20

ODF Unit

A Type

150102-48
ODF-U-A-12		 150102-49
ODF-U-A-24
150102-50
ODF-U-A-48		 150102-51
ODF-U-A-72

P/N

Dimension (mm) W×D×H

Capacity

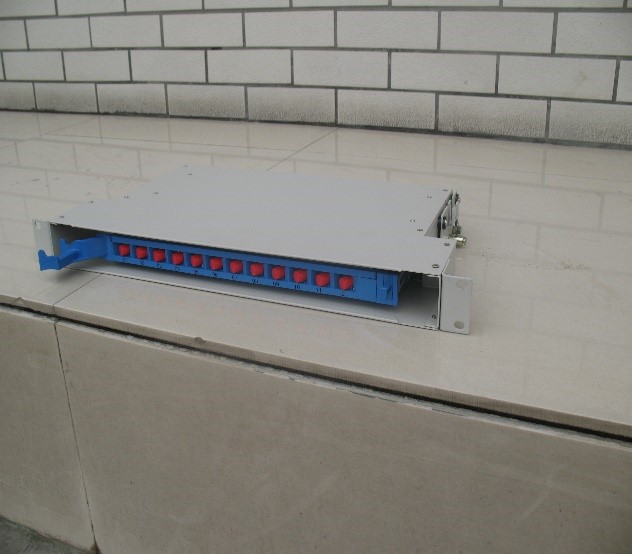

ODF-U-A-12

480×250×1U

12 fiber SC/24 fiber LC

ODF-U-A-24

480×250×2U

24 fiber SC/48 fiber LC

ODF-U-A-48

480×210×3U

48 fiber SC/96 fiber LC

ODF-U-A-72

480×210×4U

72 fiber SC/144 fiber LC

B Type

150102-52
ODF-U-B-24		 150102-53
ODF-U-B-48
150102-54
ODF-U-B-72		 150102-55
ODF-U-B-96

P/N

Dimension (mm) W×D×H

Capacity

ODF-U-B-24

480×300×2U

24 fiber SC/48 fiber LC

ODF-U-B-48

480×300×3U

48 fiber SC/96 fiber LC

ODF-U-B-72

480×300×4U

72 fiber SC/144 fiber LC

ODF-U-B-96

480×300×6U

96 fiber SC/192 fiber LC

C Type

150102-55
ODF-U-C-12		 150102-57
ODF-U-C-24
150102-58
ODF-U-C-48		 150102-59
ODF-U-C-72

P/N

Dimension (mm) W×D×H

Capacity

ODF-U-C-12

480×235×1U

12 fiber SC/24 fiber LC

ODF-U-C-24

480×235×2U

24 fiber SC/48 fiber LC

ODF-U-C-48

480×235×3U

48 fiber SC/96 fiber LC

ODF-U-C-72

480×235×4U

72 fiber SC/144 fiber LC

D Type

150102-60
ODF-U-D-72

P/N

Dimension (mm) W×D×H

Capacity

ODF-U-D-24

480×280×2U

24 fiber SC/48 fiber LC

ODF-U-D-48

480×280×3U

48 fiber SC/96 fiber LC

ODF-U-D-72

480×280×4U

72 fiber SC/144 fiber LC
